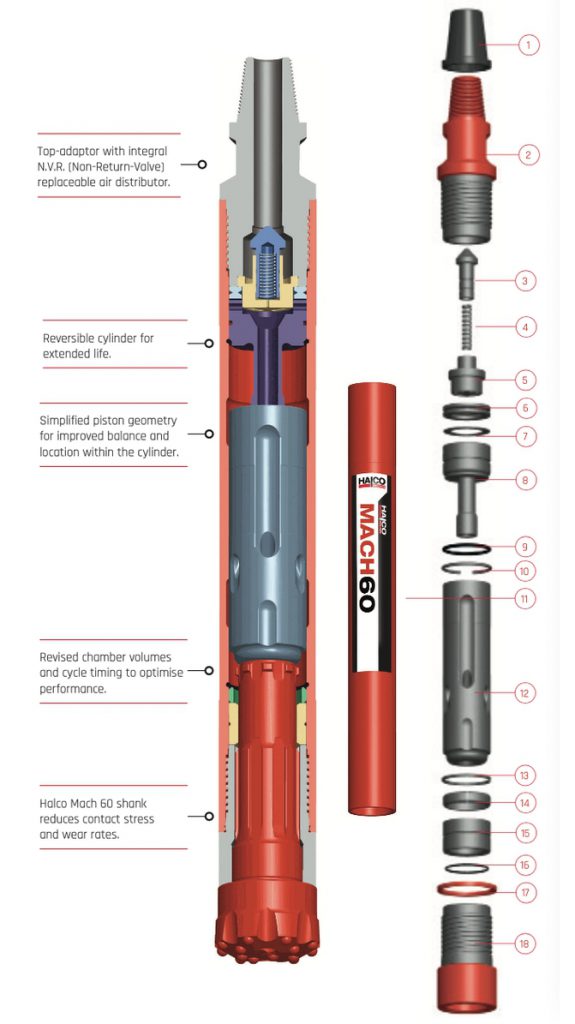

Downhole hammer Mach 60 - H6 SPIBO

The Mach 60 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures. With a proven track record of performance and reliability, the Mach 50 operates at a high frequency, making it ideal for unbroken, unstable ground conditions. The hammer is equipped with a reversible cylinder to extend life and requires few tools for service and maintenance.

Information:

• Size: 152mm - 203mm (6 1/8 - 8")
• Shaft: Halco 6
• Air pressure: 100 - 435 psi (7 - 30 bar)
• Airflow: 120 - 1150 cfm (3398 - 32564 l/min)
• Thread connection: 3 1/2" API Reg Pin Up
• Outer diameter: 138 mm (5.43")
• Wrench flat: 90 mm (3.54")
• Max. weight on bit: 1500 kg
• Min. bit diameter: 152mm
• Usable length: 1095 mm (3.54")
• Weight: 89 kg
