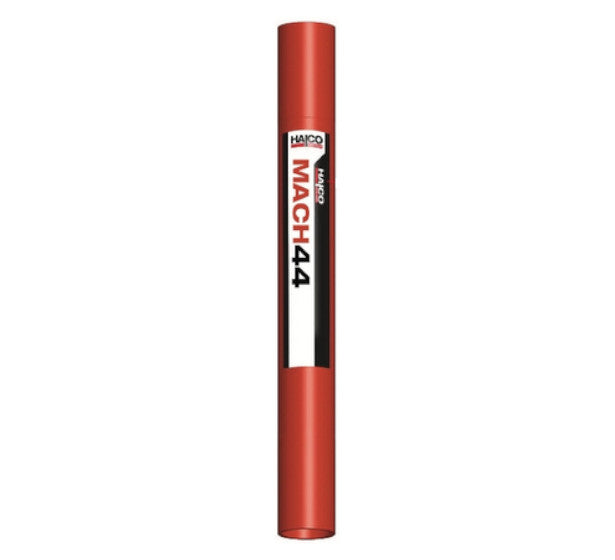

Downhole hammer Mach 44 - H4 SPIBO

The Mach 44 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures. With a proven track record of performance and reliability, the Mach 44 operates at a high frequency, making it ideal for unbroken, unstable ground conditions.

Information:

• Size: 110mm - 150mm (4 5/6 - 5 1/2")
• Shaft: Halco 4
• Air pressure: 100 - 435 psi (7 - 30 bar)
• Airflow: 100 - 1000 cfm (2832 - 28317 l/min)
• Thread connection: 2 3/8" API Reg Pin Up
• Outside diameter: 95 mm (3.75")
• Wrench flat: 65 mm (2.560")
• Max. weight on bit: 500 kg
• Min. bit diameter: 108 mm
• Usable length: 1000 mm (39.38")
• Weight: 35.3 kg
