Downhole hammer Dominator 500 - H5 SPIBO

Capable of drilling at a wide range of air pressures, the Dominator 500 is a class leader in performance. The Dominator 500 is ideal for general purpose, drilling and blasting applications.

Information:

• Size:127mm - 165mm (5 - 6 1/2")
• Shaft: Halco 5

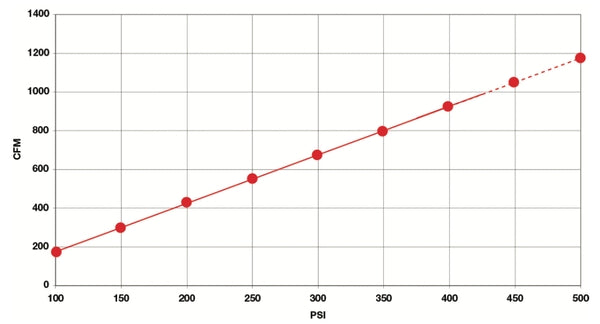

• Air pressure: 100 - 507 psi (7 - 35 bar)
• Airflow: 180 - 1180 cfm (5097 - 33414 l/min)
• Thread connection: 3 1/2" API Reg Pin Up
• Outside diameter: 118 mm (4.65")
• Wrench flat: 90 mm (3.544")
• Max. weight on bit: 900 kg
• Min. bit diameter: 127 mm
• Usable length: 980 mm (38.6")
• Weight: 58kg
