Downhole hammer Dominator 30 - IR3.5 SPIBO

The Dominator 30 hammer is a heavy-duty hammer for medium to hard rock conditions. This hammer has no inner lining, which allows for a larger
Piston diameter allows for higher impact energy. The Dominator 30 has fewer parts than other 3-inch hammers on the market, allowing for easy maintenance and servicing.

Information:

• Size: 90mm - 105mm (3 1/2 - 4 1/8")
• Shaft: IR 3.5

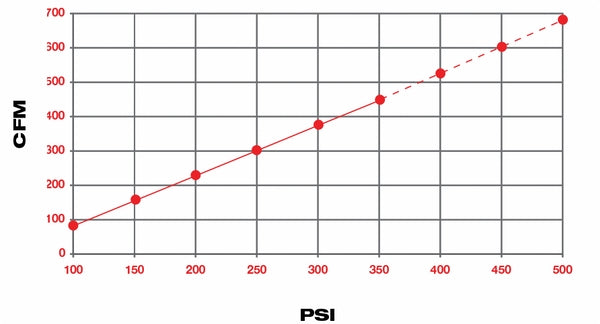

• Air pressure: 100 - 362 psi (7 - 25 bar)
• Airflow: 120 - 630 cfm (3398 - 17840 l/min)
• Thread connection: 2 3/8" API Reg Pin Up
• Outside diameter: 81 mm (3.35 inches)
• Wrench flat: 63 mm (2.48 inches)
• Max. weight on bit: 300 kg
• Min. bit diameter: 90 mm
• Usable length: 832 mm (32.25 inches)
• Weight: 23kg
